Max.recommended PV power (for module STC)
15000W
Related Guides
Photos
Video
FREE SHIPPING
30-DAYS RETURN
5-YEAR WARRANTY
GLOBAL SUPPORT

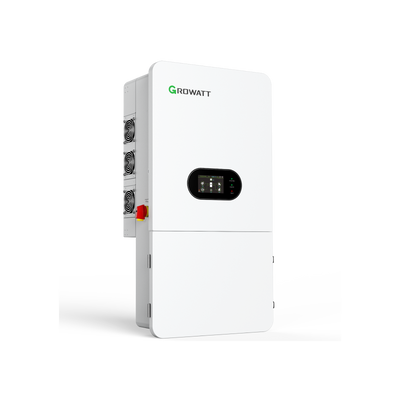

Growatt SPH 10000TL-HU-US(B)
10kW Split-Phase Hybrid Solar Inverter
$2,899.00
Sale price
Halloween 10% OFF at Checkout
Ends in
00
Days
00
:
00
:
00
Choose Global Leadership in Residential Hybrid Inverters - No.1 Residential PV Inverter Supplier
-
15,000W solar input with 3 MPPTs / 2 strings per tracker
- 150–450V MPPT range (525V max DC)
- 22A input current and 27A short-circuit current per MPPT
- 10kW split-phase pure sine wave power (120/240V or 120/208V)
- Dual AC inputs for grid and generator
- Dual Battery Ports for flexible battery configurations
- Supports 48V lithium and lead-acid batteries (AGM/Sealed, Gel, Flooded)
- Up to 200A charge/discharge and CAN/RS485 communication
- Supports multiple smart modes, including Self-Consumption, TOU Load Shifting, Backup/UPS, Grid-Tie, and Off-Grid operation.
- Plug-and-play design and intuitive wiring layout
- Smart commissioning via interactive LCD display and app
- Certified to UL 1741 (SA/SB) and IEEE 1547
-
10-year product warranty
Features
Tech Specs
Reviews
SPH 10000TL-HU-US(B)
$2,899.00 USD
Flexible Energy Solutions for Any Installation
The Growatt SPH 10000TL-HU-US 10kW Split Phase Hybrid Solar Inverter offers unmatched flexibility for a wide range of installation scenarios, from residential to commercial applications.
Whether you're integrating with grid-tied systems, going off-grid, or setting up a hybrid solar + battery storage solution, this inverter adapts to any environment.
Feature Collection
Beyond Ordinary. Built for More.
Not all inverters are created equal. The Growatt SPH 10000TL-HU-US (B) combines powerful solar conversion, battery storage, smart energy control, and reliable backup in one advanced solution. When your energy matters, choose performance that goes beyond the basics.
Built to Protect. Built for Confidence.
Your energy system deserves more than basic protection. The Growatt SPH 10000TL-HU-US (B) features multiple built-in safeguards to help protect against electrical faults, abnormal conditions, and temperature-related risks. Designed to protect your system at every step, so you can power your home with confidence.
Broad Battery Compatibility
Full-Feature App
Full Control
Get a clear view of your energy flow anytime with the Growatt app and monitor system performance with precision. Customize your energy strategy to match your needs and make every watt work smarter.
Product Overview

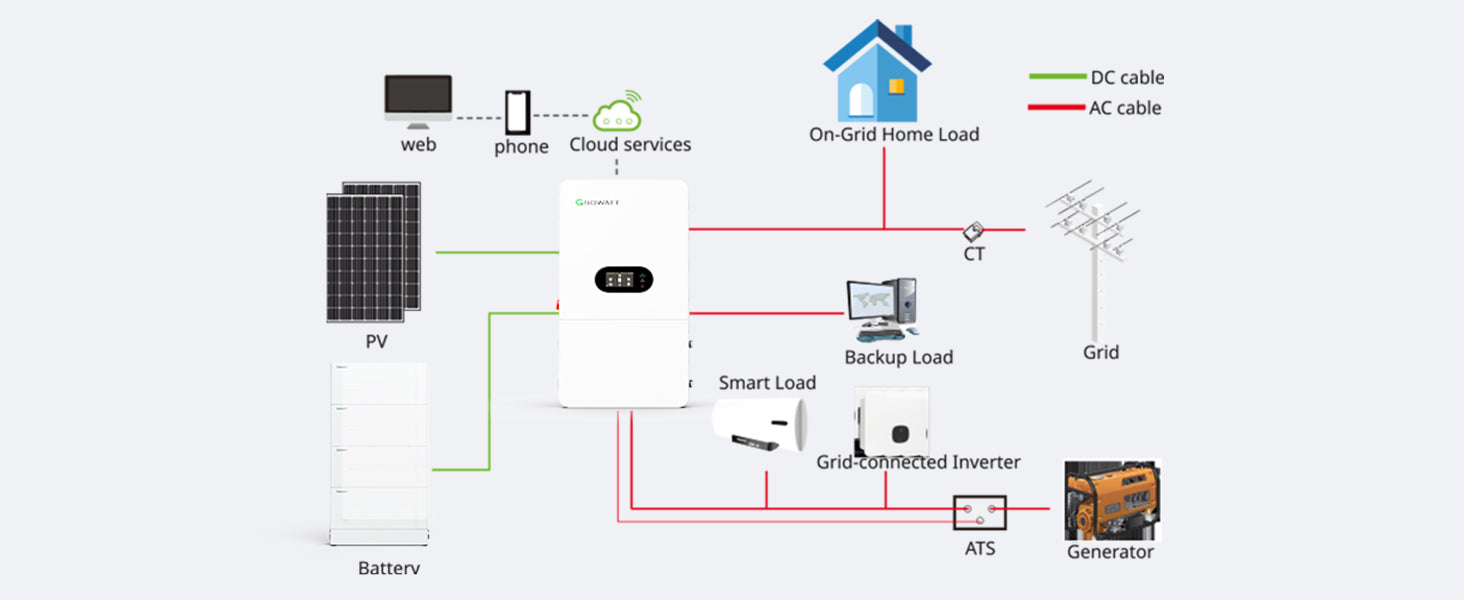

Grid-Tied or Off-Grid. Power Your Way.
Designed for both grid-connected and off-grid applications, the Growatt SPH 10000TL-HU-US (B) hybrid solar inverter delivers the flexibility to configure your energy system your way. Choose your setup. Take control of your power.
Built to Grow With Your Energy Needs.

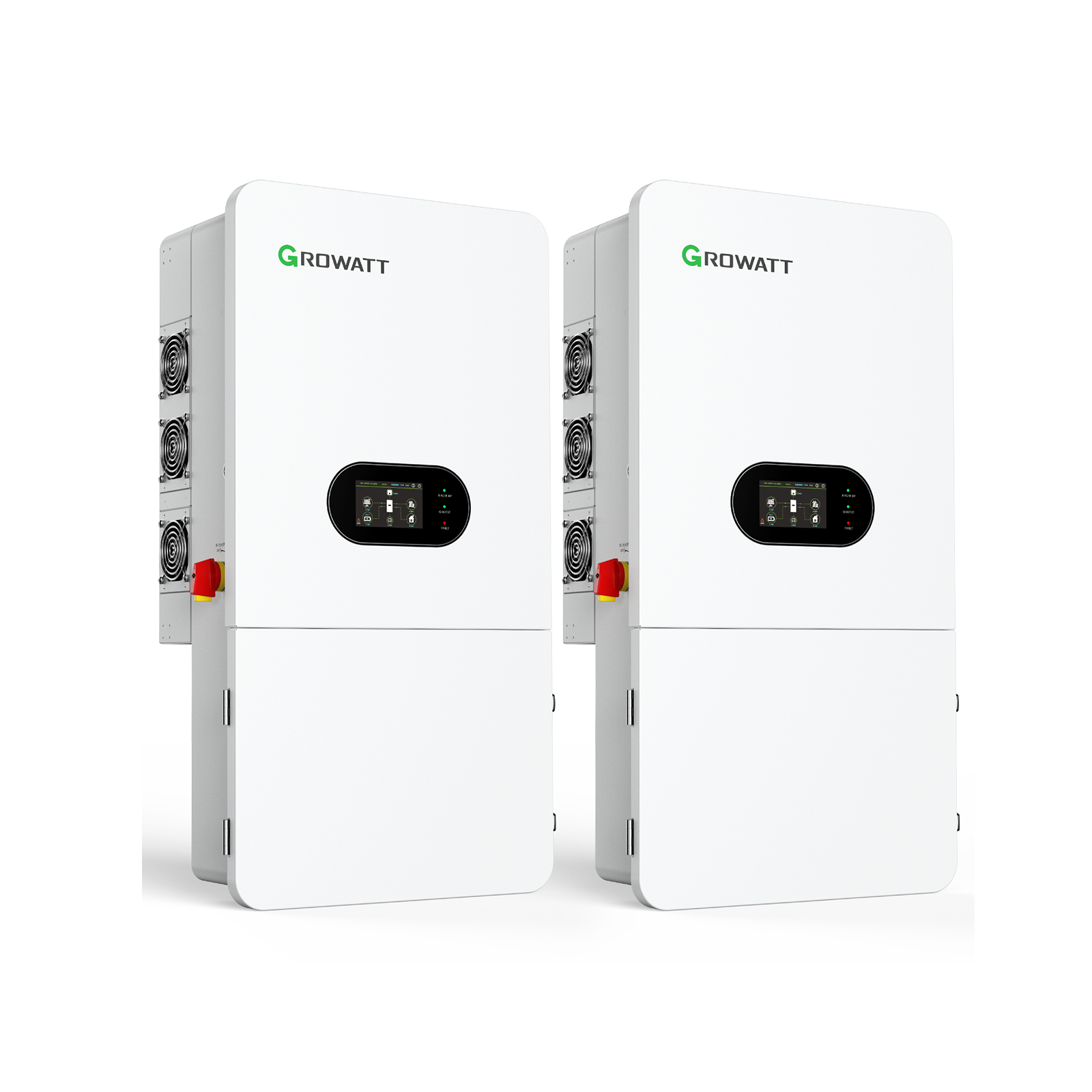

With support for up to 6 units in parallel, the Growatt SPH 10000TL-HU-US (B) 10kW solar inverter can scale from 10kW to up to 60kW of combined inverter capacity. Build your system bigger without compromising on flexibility.

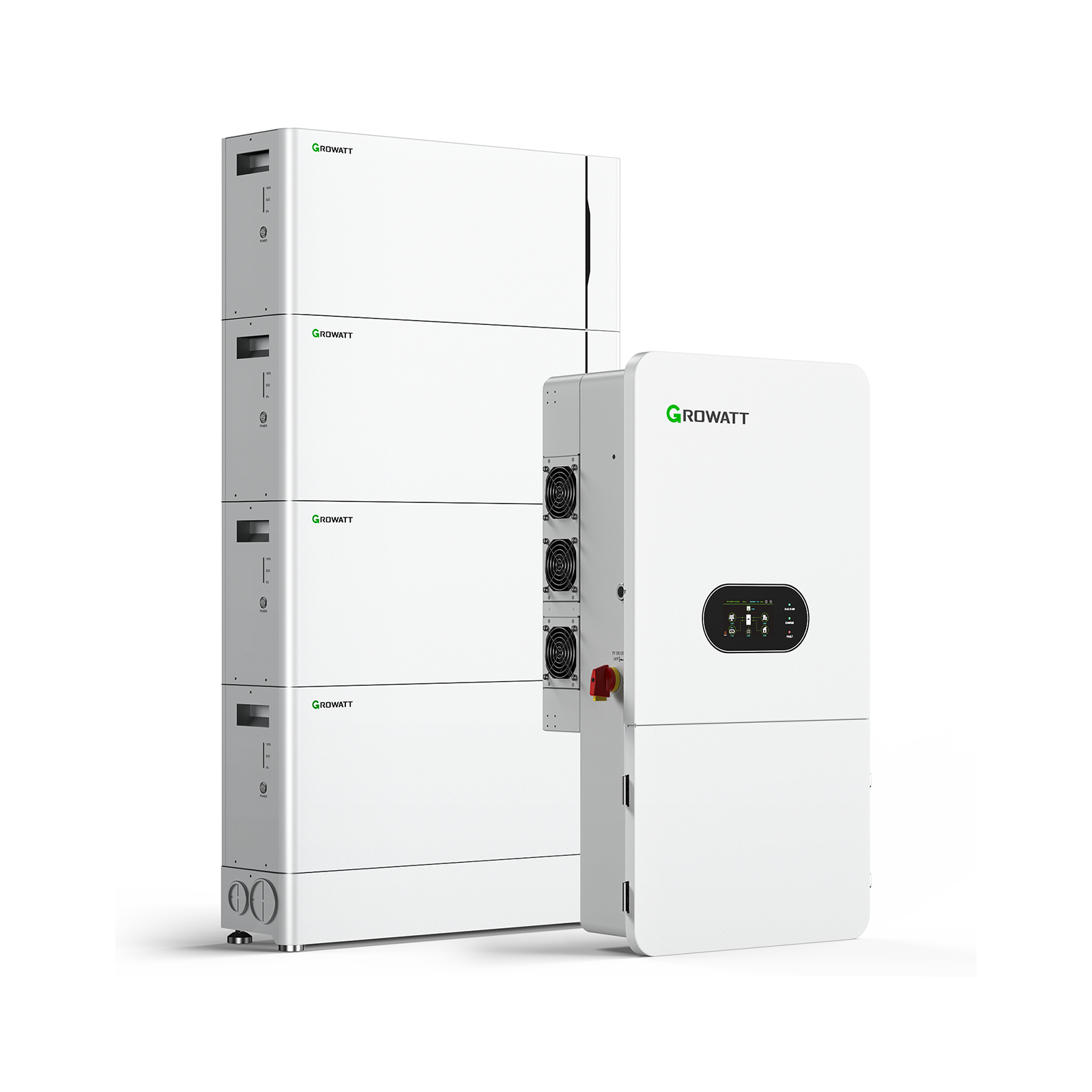

Compatible Battery Solutions
Smaller load profile?
See the 8kW model
Up to 15,000W solar input with a 1.875 DC/AC ratio — the same array charges batteries faster than on a typical 10kW platform
SPH 8000TL-HU-US(B)
FAQs
1. Which batteries are compatible with the SPH 10000TL-HU-US(B)?
The inverter works with all standard 48V battery types, including LiFePO4 (lithium iron phosphate) and lead-acid batteries (AGM/sealed, gel, and flooded). It communicates with compatible lithium batteries through CAN or RS485 closed-loop communication, so the inverter and battery exchange real-time data on charge rates and protection limits. For best integration, we recommend Growatt ALP 48V batteries — but the dual battery ports and open communication protocol give you room to design or upgrade your storage flexibly.
2. Can I use the SPH 10000TL-HU-US(B) without batteries?
Yes. The inverter can power your home directly from solar during the day in grid-tied mode without any batteries connected. Keep in mind that without a battery, the system will shut down during a grid outage for safety reasons (anti-islanding). If backup power matters to you, we recommend starting with at least one 48V battery module — you can add more capacity later at any time.
3. How many SPH units can be connected in parallel?
Up to 6 units can operate in parallel, expanding total output from 10kW to as much as 60kW of combined inverter capacity. This makes the SPH 10000TL-HU-US(B) suitable for growing households and light commercial installations — start with one unit today and scale without replacing your core equipment.
4. How fast does it switch to battery power during an outage?
In Backup/UPS mode, the transfer time is under 10 milliseconds — faster than a desktop computer can register an interruption. Lights stay on, computers don't reboot, and most electronics never notice the switch. Combined with 120/240V split-phase output, it covers your whole panel including 240V loads like well pumps, HVAC, and electric ranges.
5. Does the inverter support a backup generator?
Yes. The SPH 10000TL-HU-US(B) features dual AC inputs — one for the utility grid and one dedicated to a generator. This is a key advantage for outage-prone areas: when a storm drains your battery bank over multiple days, the generator input lets you recharge without waiting for sunshine, with the inverter managing the charge process automatically.
6. Is the SPH 10000TL-HU-US(B) certified for US grid-tied installation?
Yes. It is certified to UL 1741 (SA/SB) and IEEE 1547 — the standards US utilities require for grid-interactive inverters. This certification covers interconnection approval in most US jurisdictions, though local permitting requirements vary by county and utility. Always confirm requirements with your installer and local authority having jurisdiction (AHJ) before installation.
7. The unit weighs 42.5kg (93.7 lbs). Is installation difficult?
The weight reflects industrial-grade components and a robust transformer design — it's a two-person installation, and the included wall-mount bracket simplifies positioning. Most installations are completed by a licensed electrician in a single day. We provide detailed installation manuals, wiring diagrams, and free technical support (email and WhatsApp) through the whole process.
8. What does the 10-year warranty cover, and how do I register?
The SPH 10000TL-HU-US(B) carries a 10-year product warranty covering manufacturing defects and component failures under normal operation, backed by Growatt's official after-sales service in the United States. Register your product after purchase through our support team (support.pps@growatt.com) with your order number and installation details. Keep your proof of purchase — registration takes under five minutes and activates full warranty service.
9. Should I choose the 8kW or the 10kW model?
Start with your peak simultaneous load: add up everything that could run at once during an outage — fridge, well pump, HVAC, lights, electronics. If that total stays under 8,000W, the SPH 8000TL covers it and frees budget for more battery capacity. If you run central AC, an electric range, or EV charging alongside backup loads, step up to the 10kW model. Both accept the same 15,000W of solar and the same 48V batteries, so your array design doesn't change either way. Or check our guide: 8kW vs 10kW Hybrid Inverter: Which Size Do You Actually Need?
