Growatt 200W Solar Panel
- MC4 Connector - Works with most third-party devices
- Lightweight and foldable, easy to carry

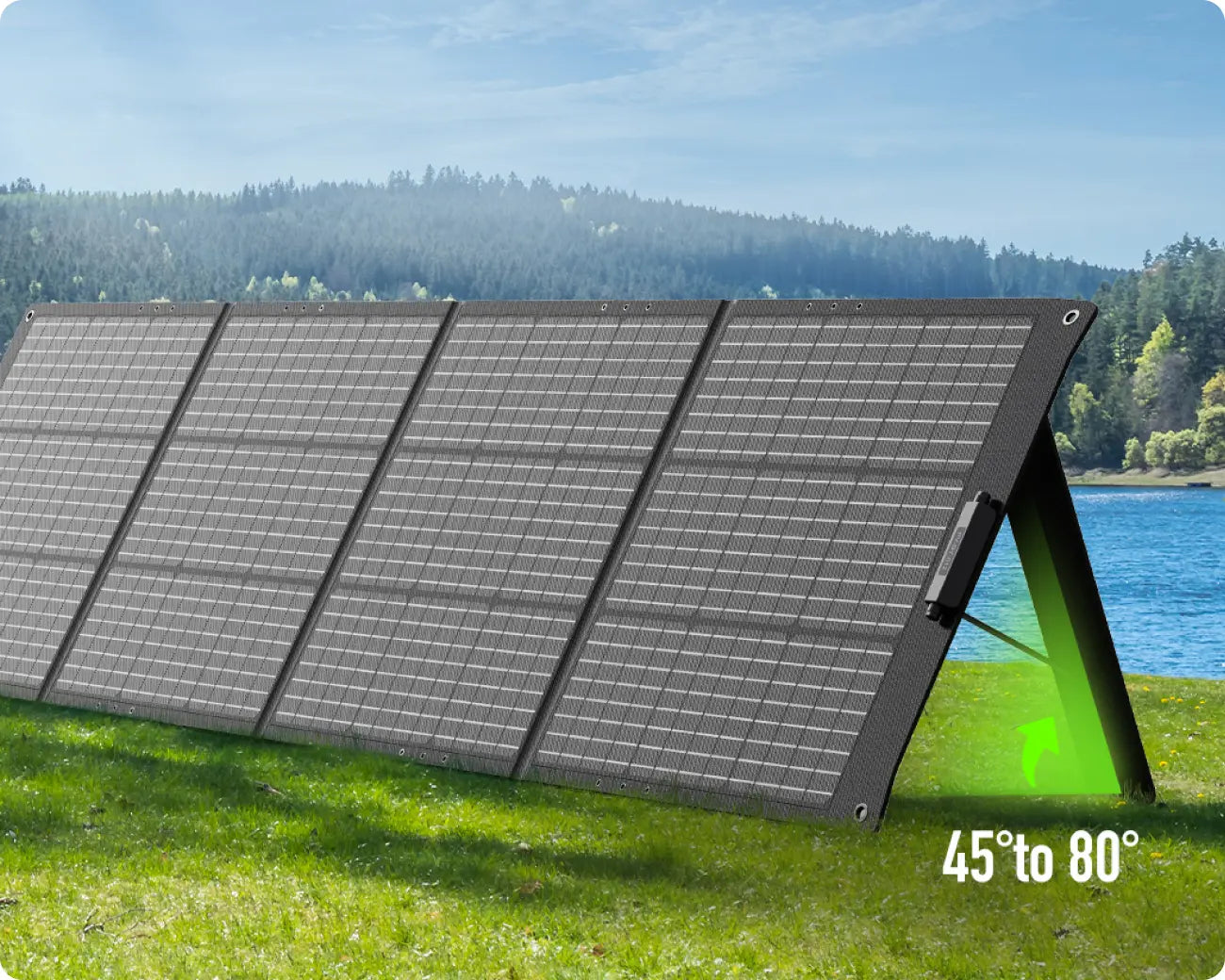

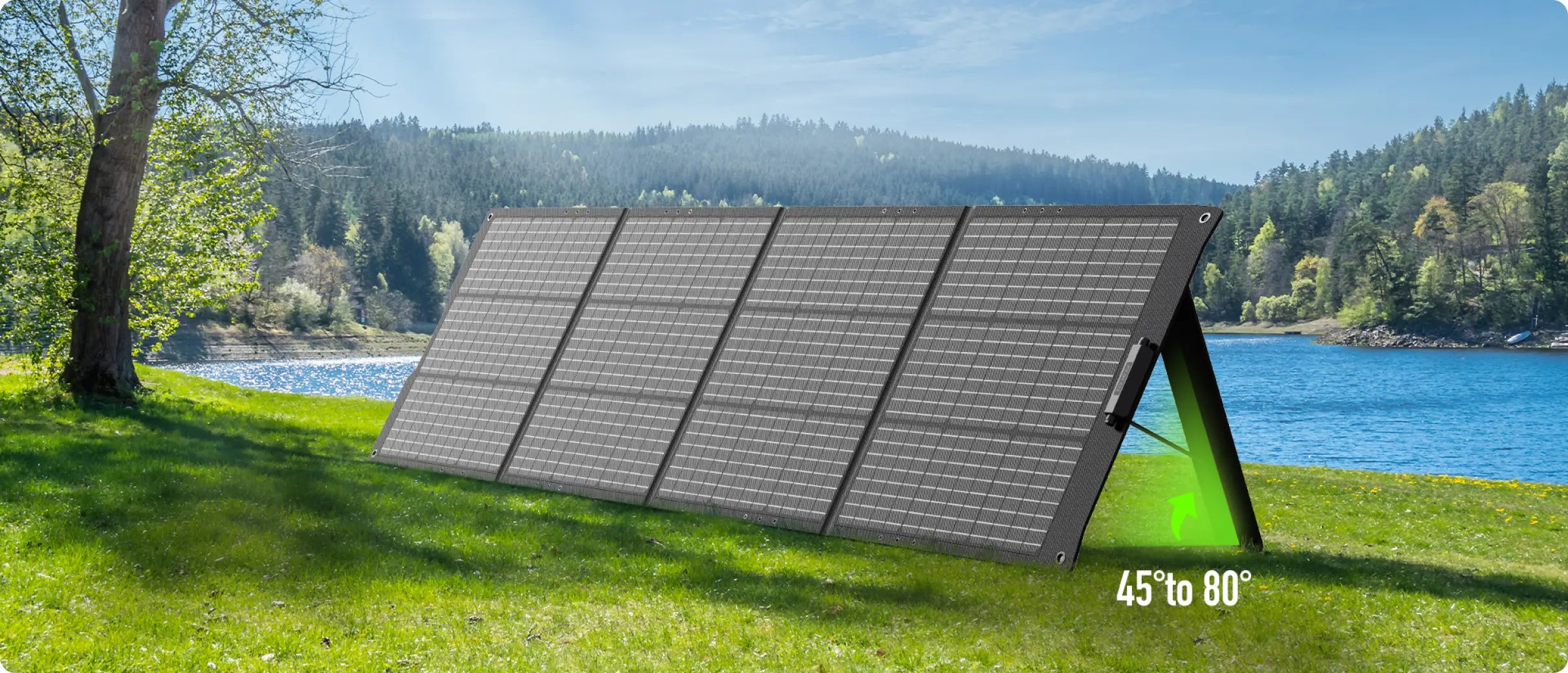

- Easy Setup with Kickstand

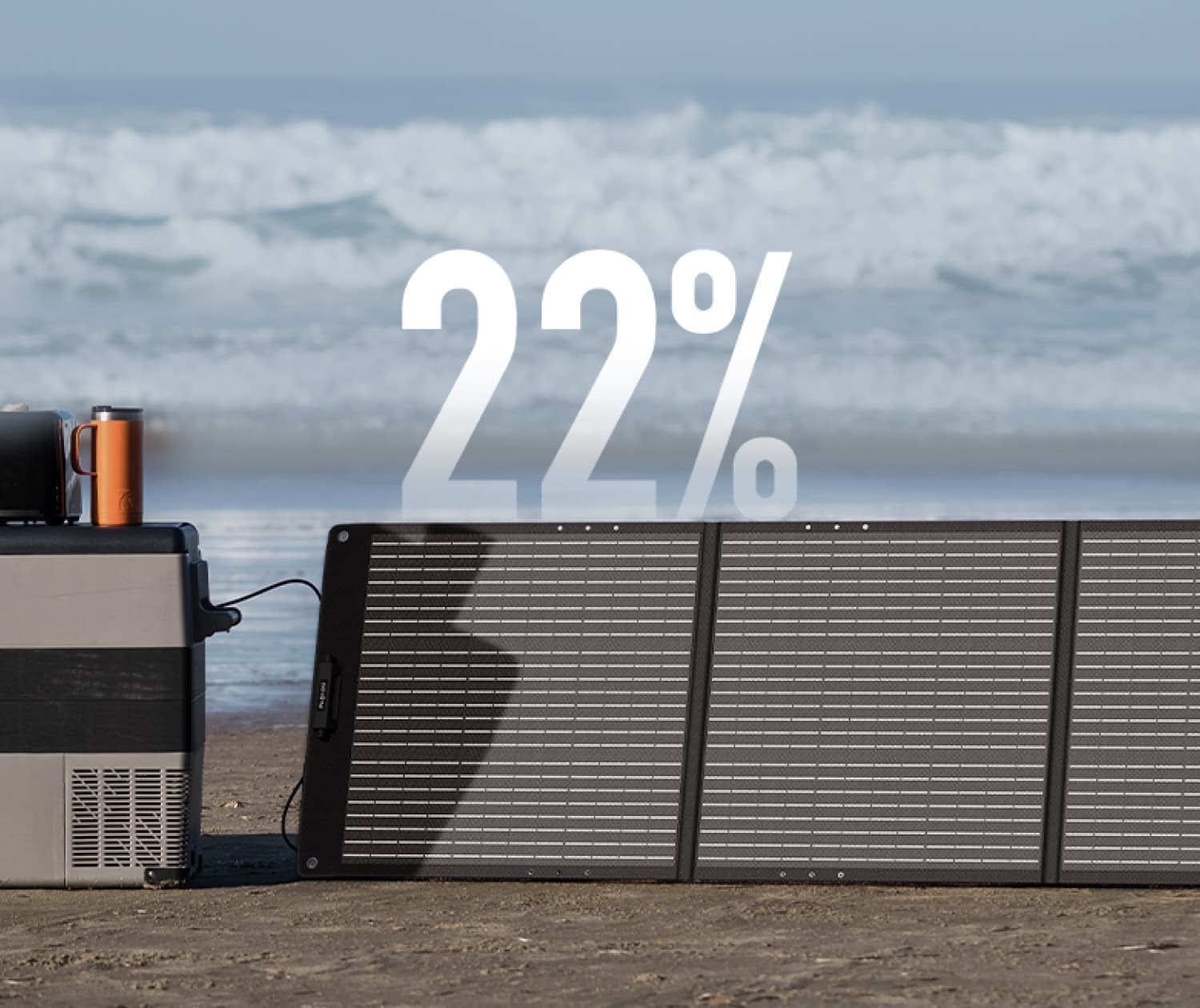

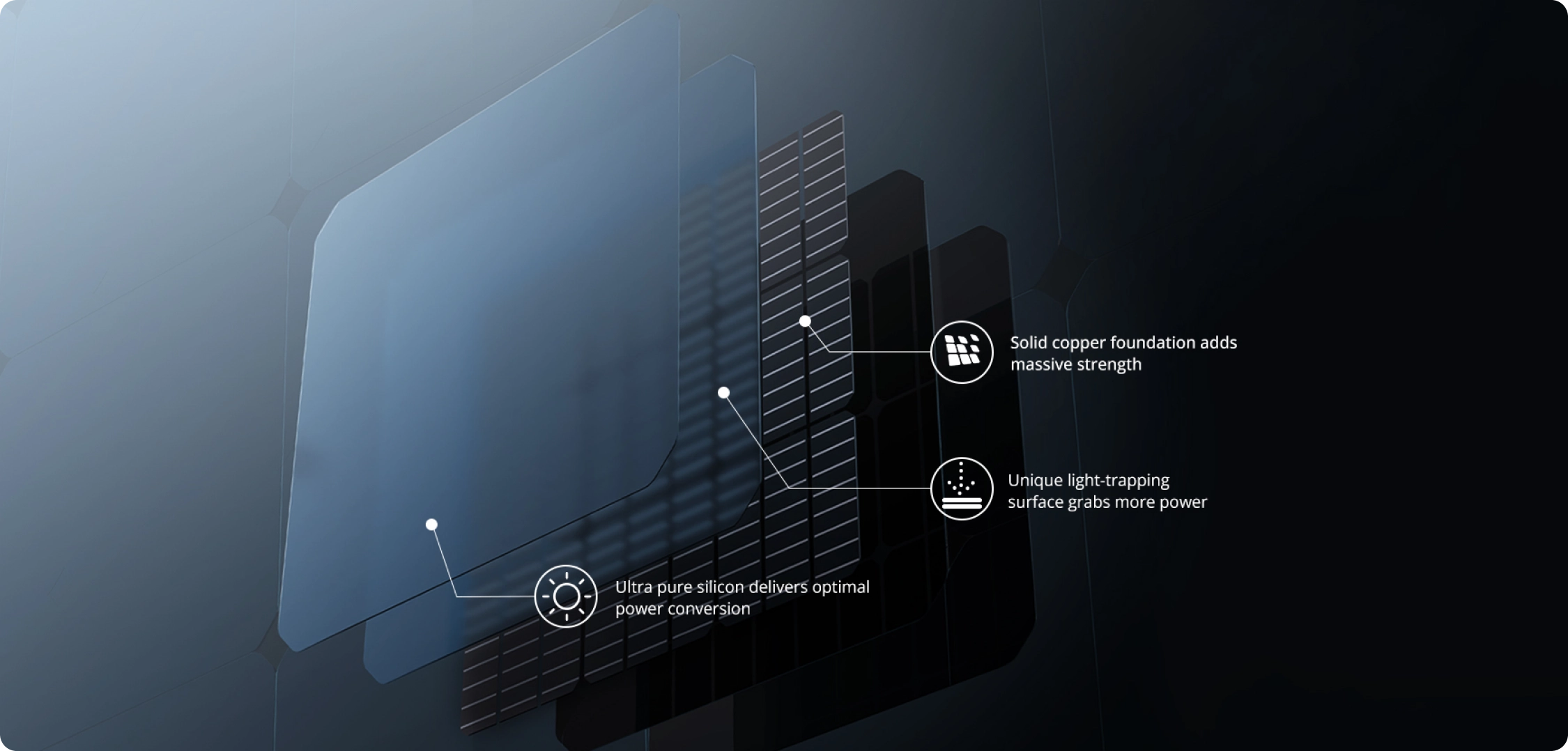

- 22% Conversion Efficiency
- Durable & IP67 Waterproof
- 200W Rated Power

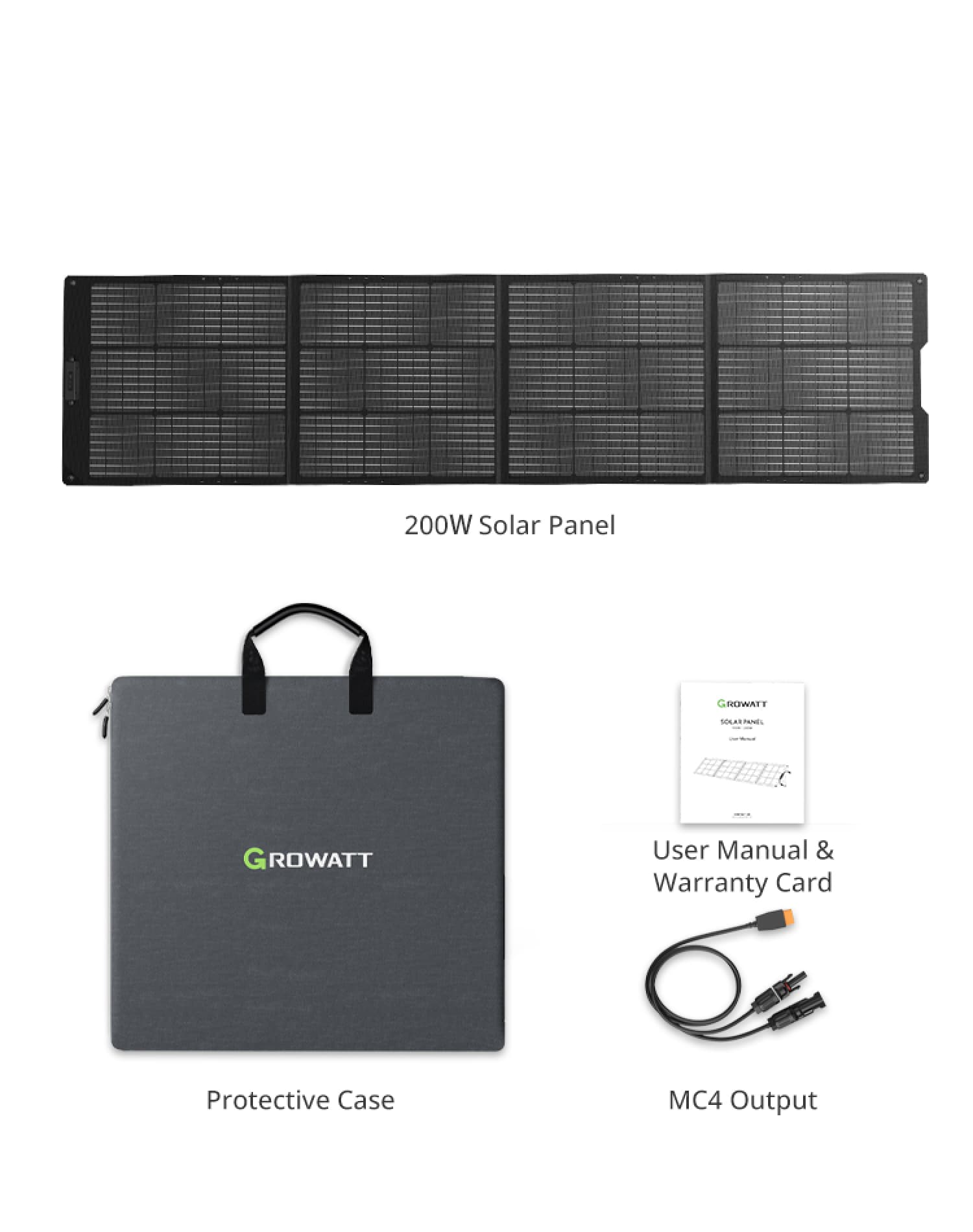

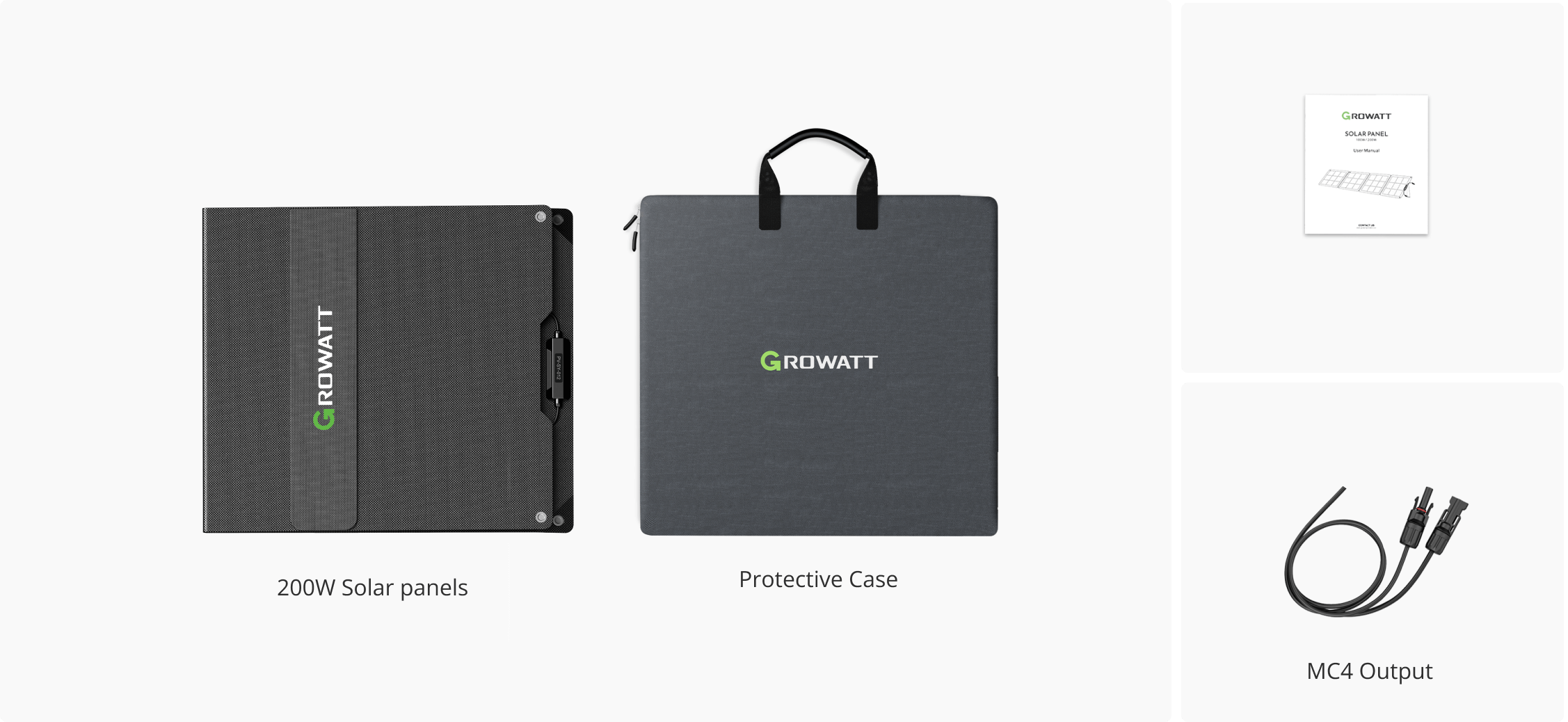

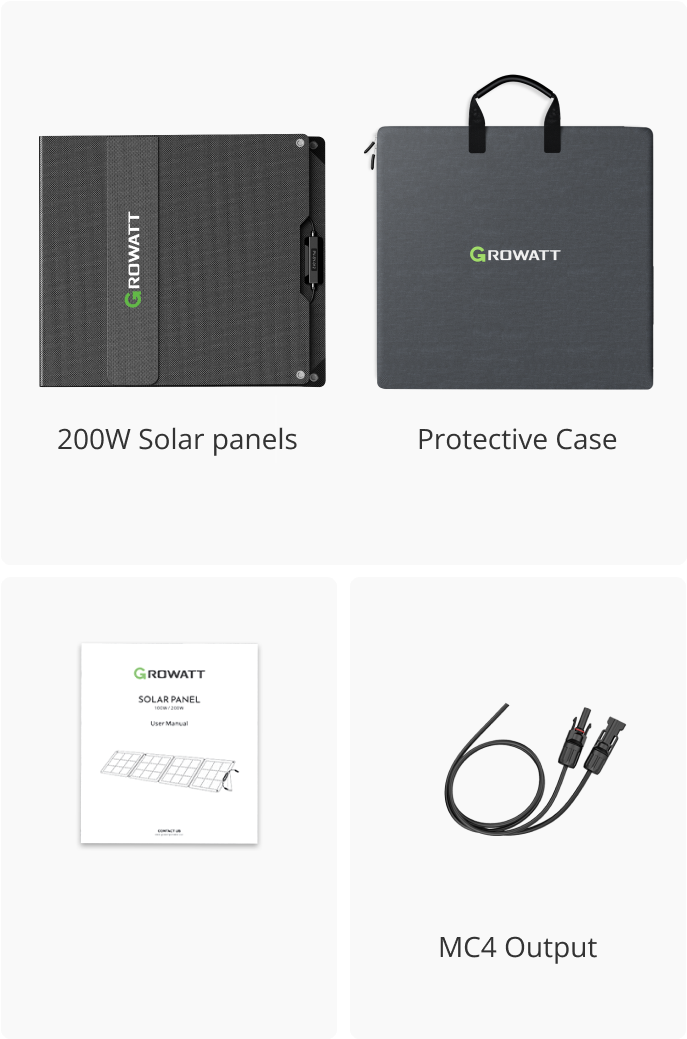

1*200W Solar Panel
|Rated Power||Cell Type|
|200W (+/-10W)||Monocrystalline silicon|
|Conversion Efficiency||Connector Type|
|Power Current||Open Circuit Voltage|
|9.92A||24V (Vmp 22.8V)|
|Short Circuit Current||Dimension (folded)|
|10.46A (Imp 9.93A)||603*540*25±5mm (23.7*21.2*1.0±0.2in)|
|Dimensions (unfolded)||Weight (with Case)|
|2270*540*25±5mm (92*21.2*1.0±0.2in)||Approx 15.65lbs (7.1kg)|
|Net Weight||Output Circuit Voltage|
|Approx 15.43lbs (7kg)||21.16V (Vmp 19.15V)|
Why can't the solar produce rated power when charging to portable power stations?
Solar charging input is affected by factors such as the intensity of the light and the angle of the panel placed on the ground. 200W is an ideal tested result in laboratory. To reach the best solar charging performance, try charging under the full sunlight and make sure there is no shadow cast on the panel.
Is the solar panel waterproof?
Growatt 200 Watt portable solar panels have a waterproof rating of IP67 which will protect the product from water splashing and temporary water immersion. But don't soak it in water directly or put it in the rain.
How to clean the solar panel surface?
We recommend using a soft & damp cloth to wipe the surface to remove dust or dirt on the solar module. Please make sure you clean your solar panel regularly to avoid a reduction in charging performance.

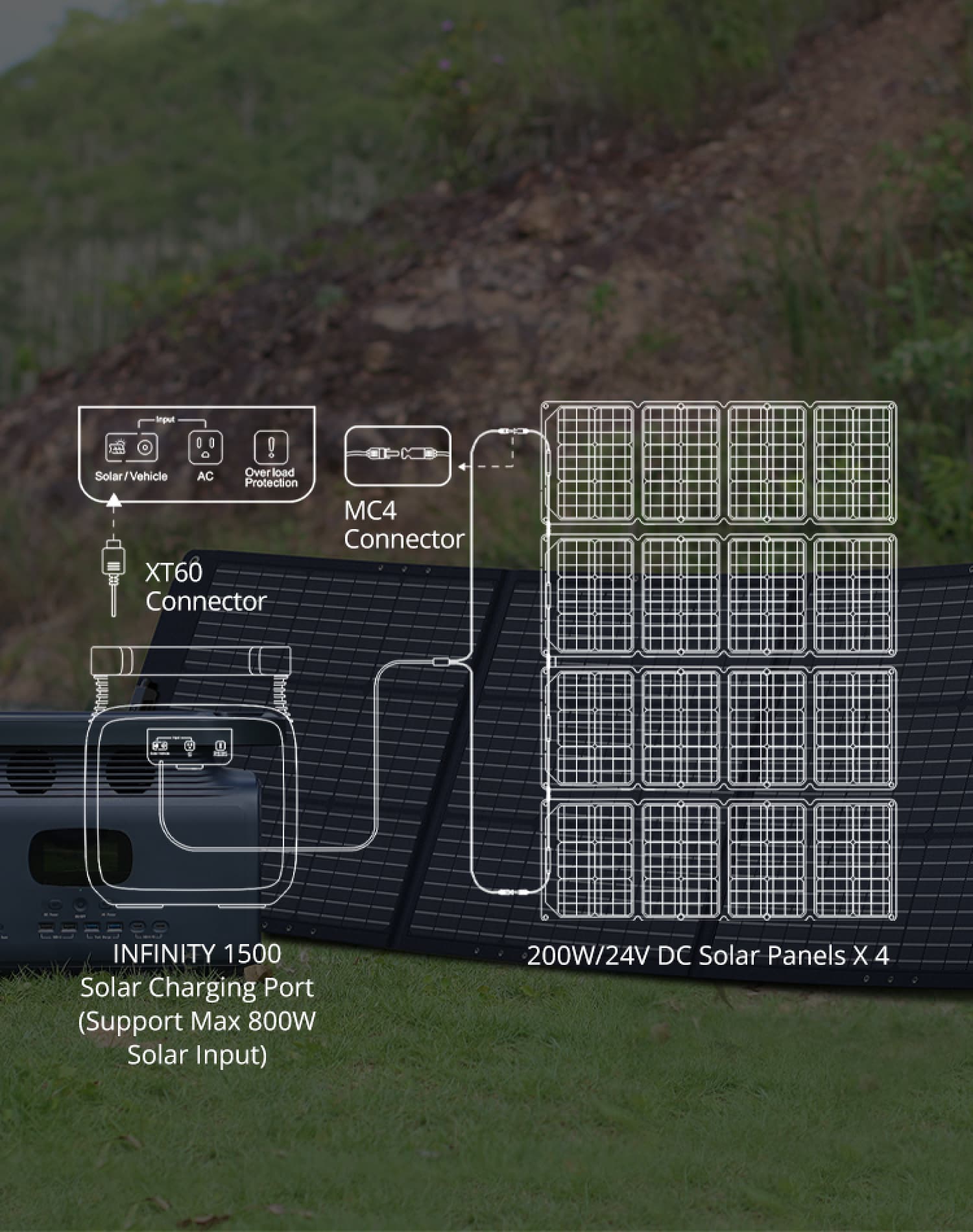

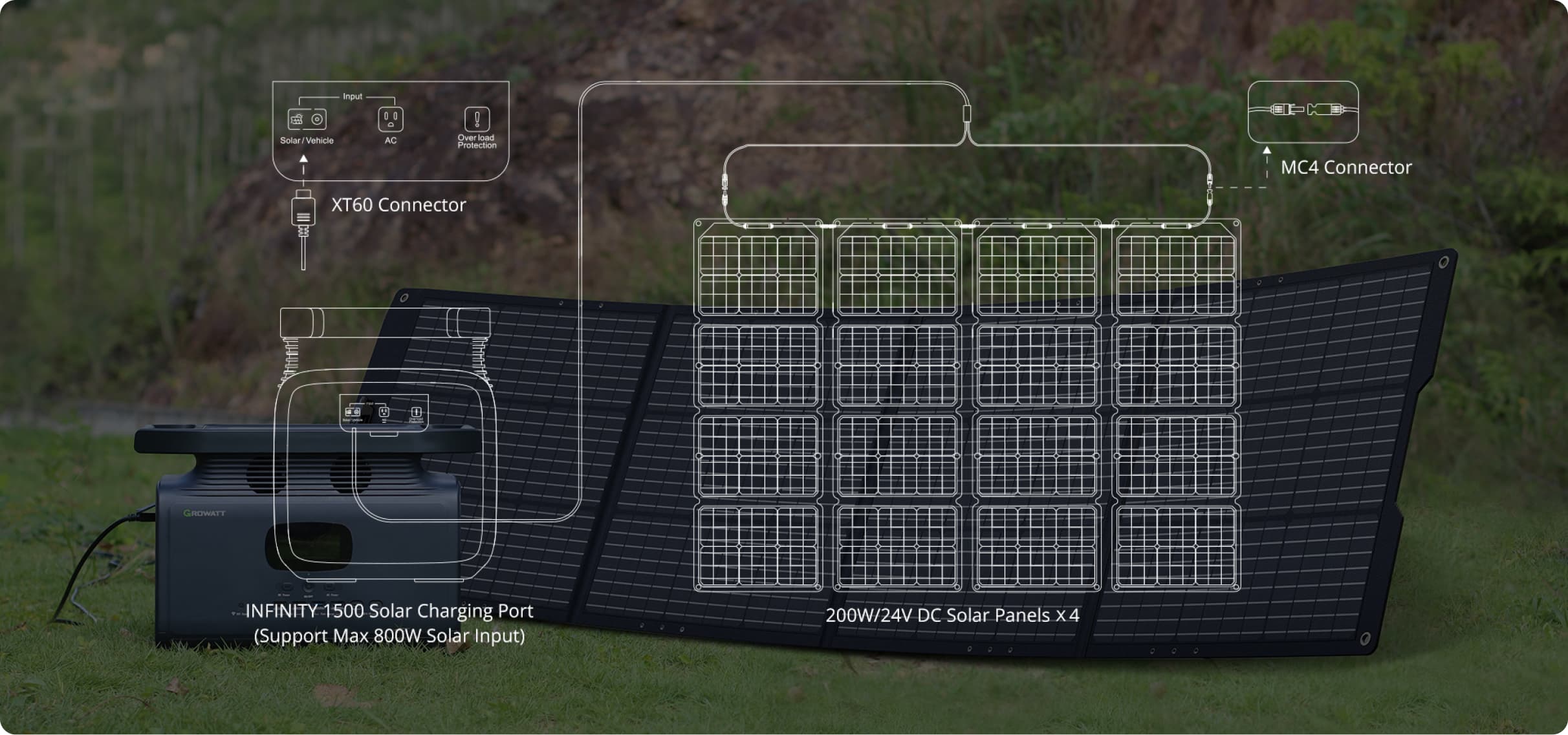

Do Growatt 200W solar panels work with third-party products？
Yes, Growatt 200W portable solar panel has an MC4 connector that has excellent compatibility to support third-party devices. As long as the device can connect via an MC4 connector and support the amperage, voltage, and wattage that a Growatt solar panel outputs.
How Many Types of 200W solar panels？
According to the material, it can be divided into four types: monocrystalline, polycrystalline, PERC, and thin-film panels, among which monocrystalline solar panle is the most popular and the best, and Growatt 200 watt portable solar panel is made of monocrystalline.
If classified by appearance, they include: portable 200-watt solar panels, flexible 200-watt solar panels, and fixed 200-watt solar panels.
What can I run with 200-watt solar panel?
You can use the 200W solar panel to charge a battery, battery pack, or portable power station to power your small appliances. Examples include laptops, tablets, mobile phones, coffee makers, LED lights, and microwave ovens.
I’m building out my 2023 Ford Transit and needed the latest technology at a great price. Well the 1300 hit it out of the park! Small footprint, all the best features, Light and powerful. Really happy with my purchase and it’s already running off solar inside my van. It can keep topped off with 200 watts of solar running my new Dometic fridge 24/7. Great system.
great panel at a great price
Open Circuit Voltage
24V (Vmp 22.8V)
Short Circuit Current
10.46A (Imp 9.93A)
Output Circuit Voltage
21.16V (Vmp 19.15V)
Output Circuit Current
9.92A (Imp 9.42A)
92 * 21.2 *1in
23.7 * 21.2 * 1in
